Gene Ting-Chun Kao

Gene Ting-Chun Kao is an architect, a designer as well as a prolific programmer. He specialises in advanced geometry, computational design, form finding, and digital fabrication. He is currently doing research & innovation, development, programming and software development in 5D.BIM Department, Technical Head Office, in Züblin, Strabag AG. He completed his master thesis in two institutes — Institute of Building Structures and Structural Design (ITKE) and Institute for Computational Design and Construction (ICD) in University of Stuttgart, Germany. By cooperating with architects, computer scientists, and structure engineers, he has developed several programs to integrate interdisciplinary fields. In his perspective, architectural aesthetics is closely related to structure system and geometry logic. In 2013, GENEATCG (www.geneatcg.com) was established, and he shared many open source codes online. He believes that programming and mathematics will lead architectural design into a whole new era.

Source Code

Leopard is an open source mesh processing solution for grasshopper that allows users to interact with rhino geometry and create customised mesh shapes. By selecting Mesh vertices, edges and faces, users have more freedom to edit meshes intuitively and use different subdivision schemes to selectively choose multiple areas to fix.
Mesh data using Plankton for internal processing.
Leopard is still in the very early development stage, so please use it for your own risk and we welcome any feedback, discussion or insight you may provide.

Leopard © 2016 Gene Ting-Chun Kao and Alan Song-Ching Tai

More information see Grasshopper forum

Source Code

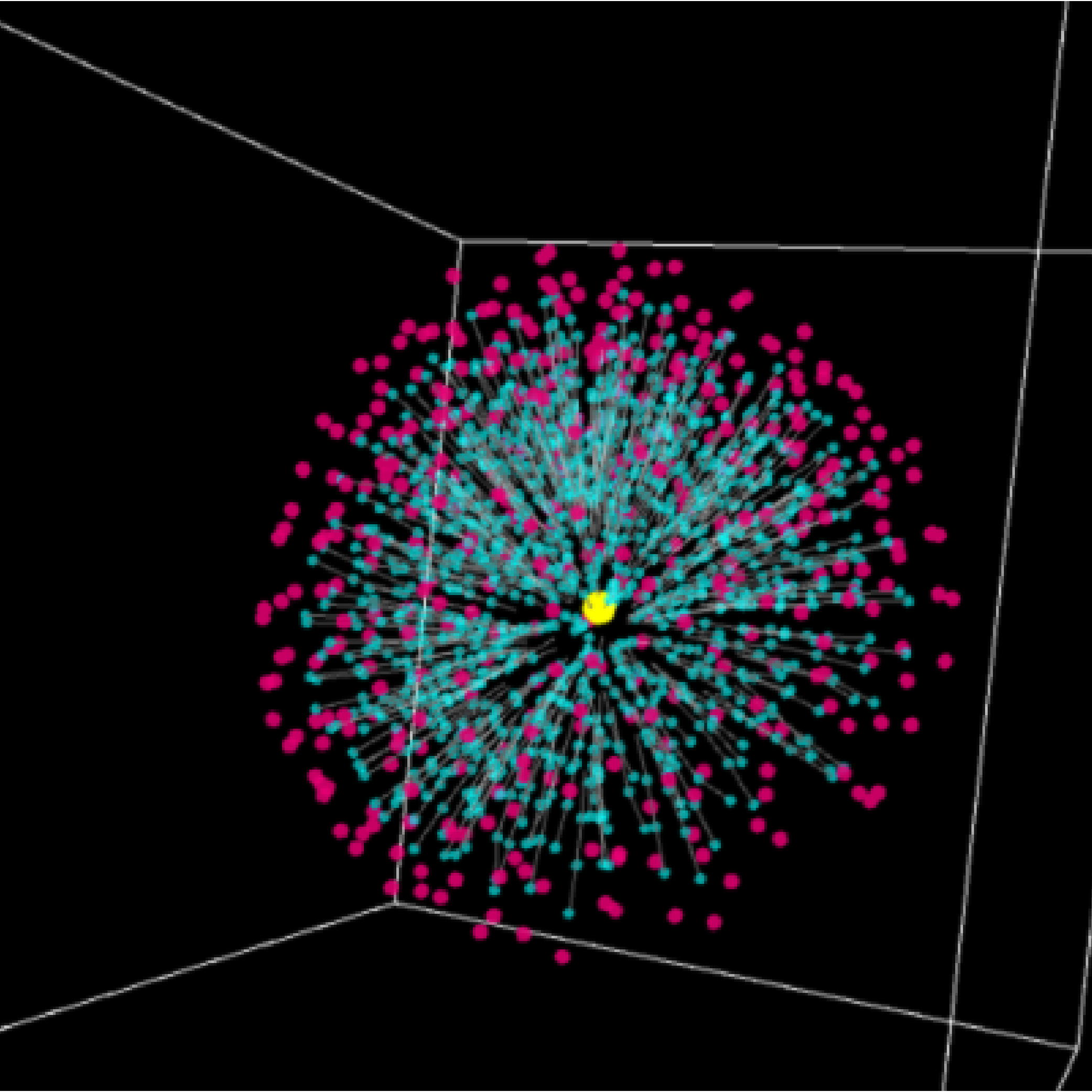

This simple swarm script with GUI interface was written in Processing about 5 years ago. Now I figure out lots of code from this script should be improved! For instance, we can implement KDTree later...
Hope this code from the previous version will help people who needs or interested in it.

Source Code

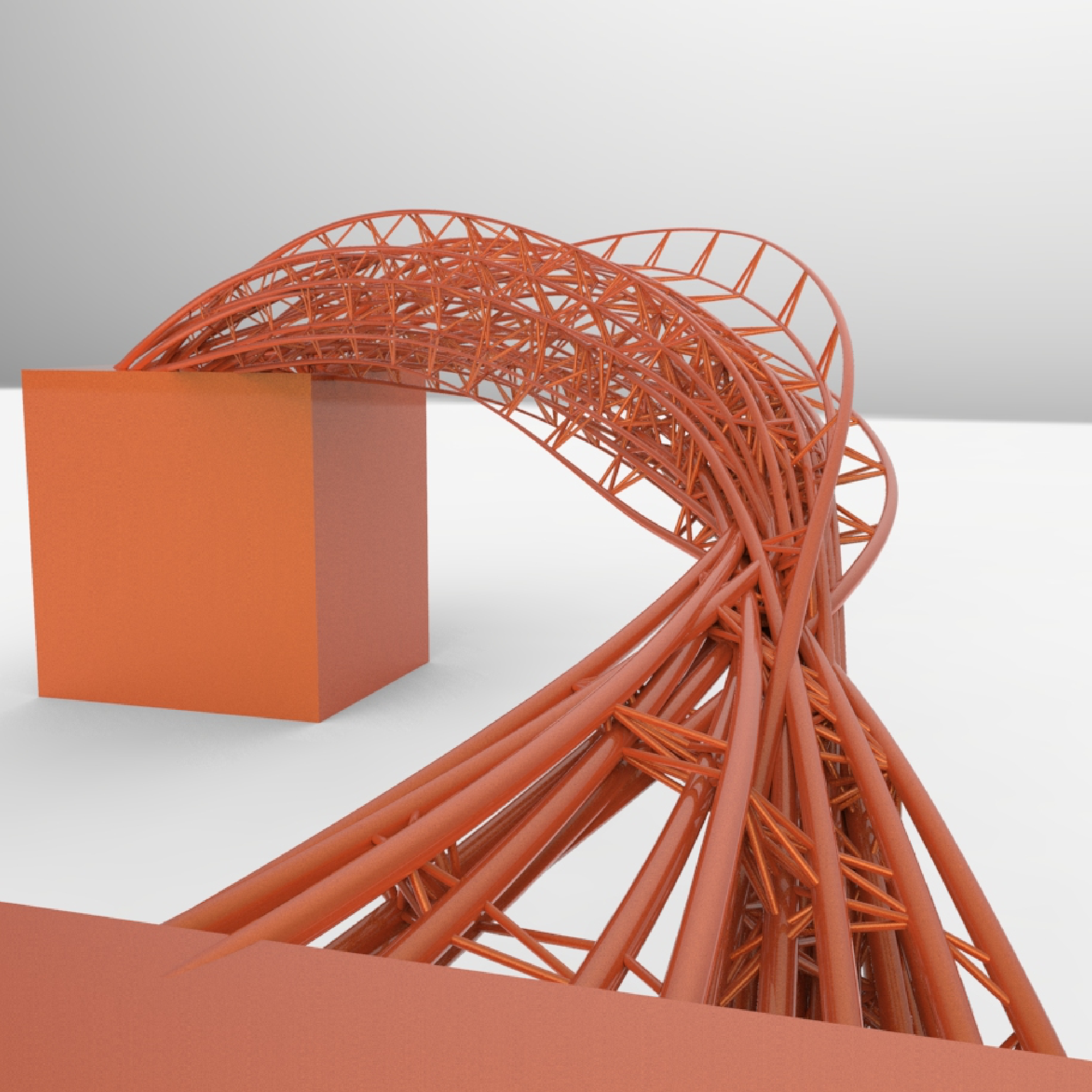

Swarm Behavior + Attractor : Agent methods:

1. Align: Move in the same direction as your neighbours.
2. Cohesion: Remain close to your neighbours.
3. Seperation: Avoid collisions with your neighbours.

Attractor methods: (Controlling the shape)
From starting points move to target points to create bridge. Using swarm simulation in Grasshopper is in this post: Swarm Python GH Component

Source Code

This project was my undergraduate architectural thesis design using Processing + Java code Take a look if anyone is interesting, and welcome to download it. Java environment is Java SE 6.

The Digital Lamp of Architecture - A New Church Prototype
Thesis Video

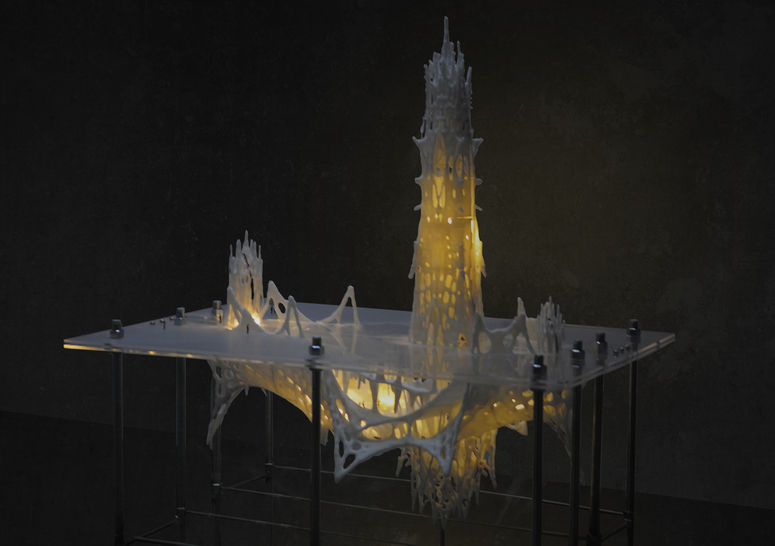

3D Printed Model (Also generated by this java code)

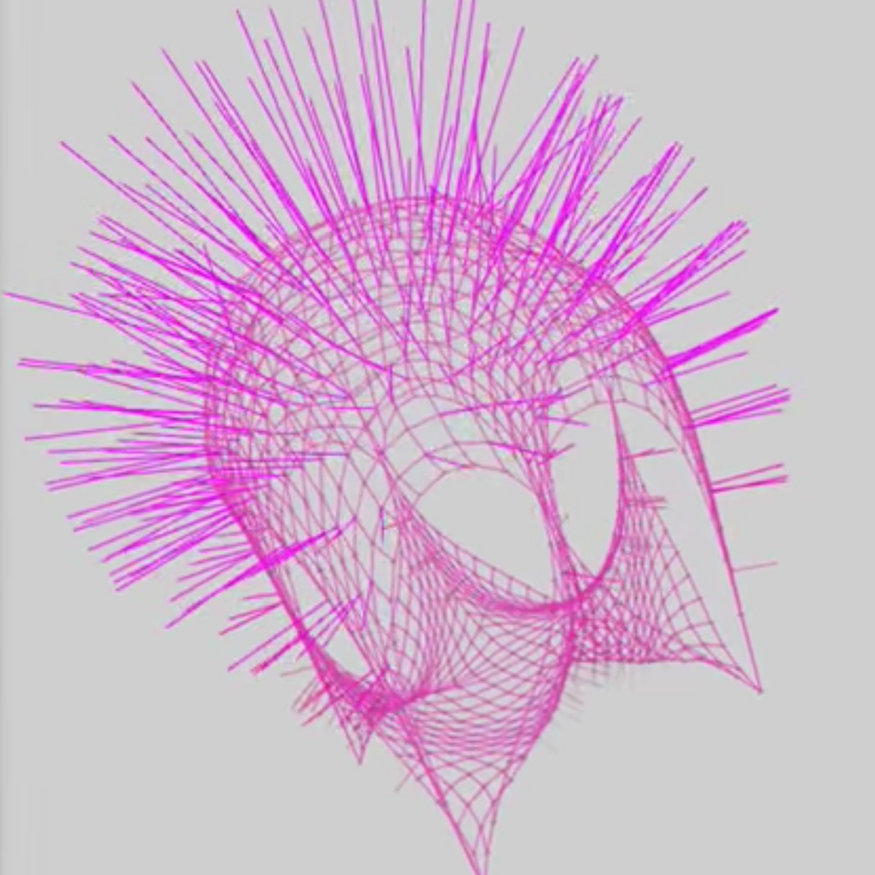

This is GUI software of Project of "The Digital Lamp of Architecture" Code written in 2013 Code credit to Jared Counts Curtain Coding Structure in BlueThen.com The Digital Lamp of Architecture referred to John Ruskin's book "The Seven Lamps of Architecture, " and make a comparison between its age and our digital age. Through traveling, description in theory can be highly discovered within backpacker's own eye. Finally, digital technology was implanted into church architecture as an example to reflect on Ruskin's theory. One of the most important element is "Sublime." Besides, scale, structure and ornamentation was used to interpret and practice in Digital Architecture.

Source Code

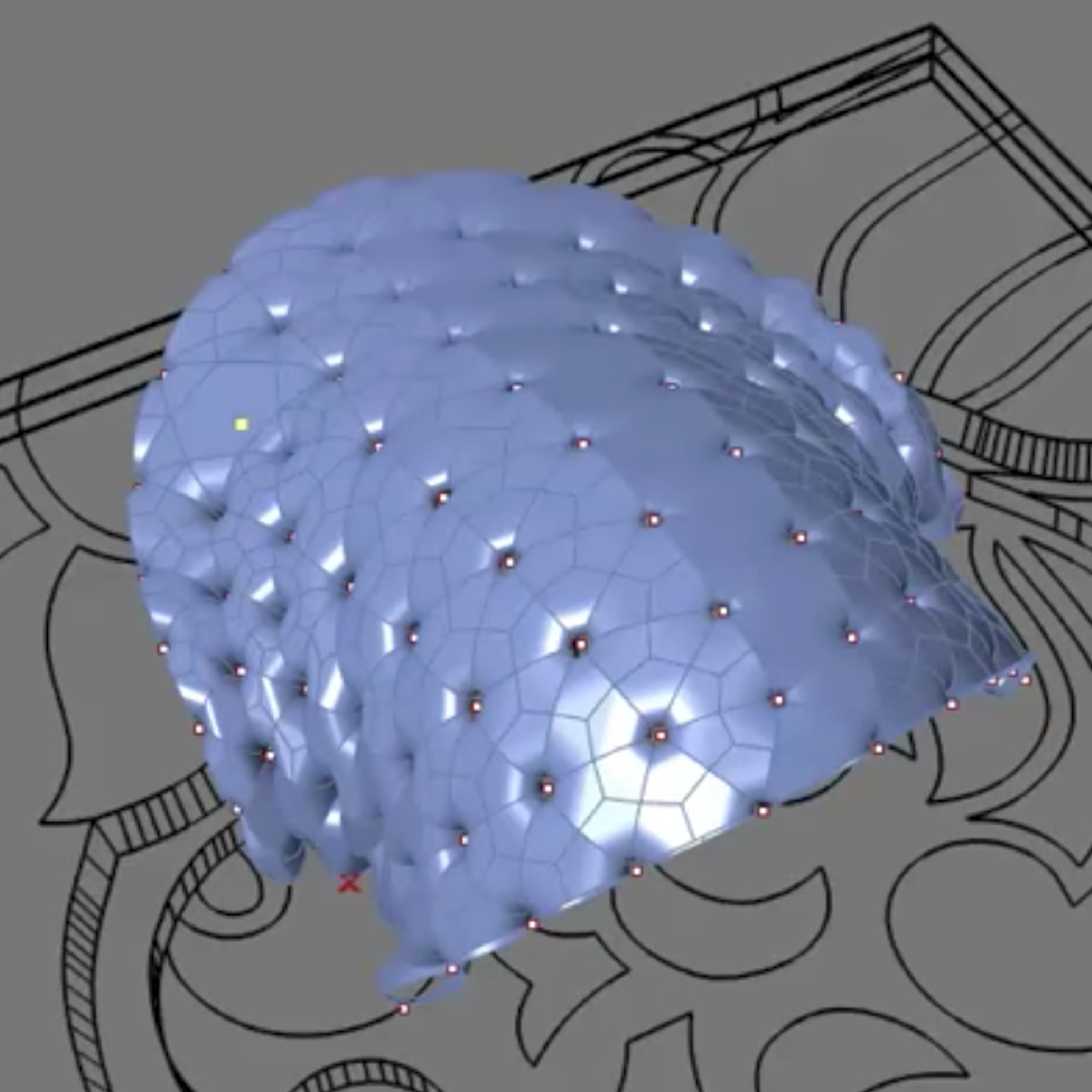

I was in the computational design team while designing the ICD/ ITKE Research Pavilion 2015-16 and was mainly in charge of developing computational tools. Here is the demonstration video to show the geometrical implementation. One of the input parameters from the plugin is a mesh surface, and the output parameters are all tree data structure thus some double-layer light weight structure as well as some planar plates can be generated (Planar plate wasn't realized due to the decision making and scheduling during the development). All the geometries are labeled in the right sequence so they can be fabricated directly: The demo video above shows the workflow from mesh to pavilion geometry by using our customised Grasshopper component, and we can select vertices from the mesh by using Selectable Preview plugin. Finally, the customised component can generate plate and double layer topology seamlessly. Some part of the code is on my github and the code project was developed together with Julian Wengzinek, Thu Nguyen-Phuoc and Long Nguyen.

The video of ICD/ITKE pavilion project can be seen here.

Download paper

Abstract

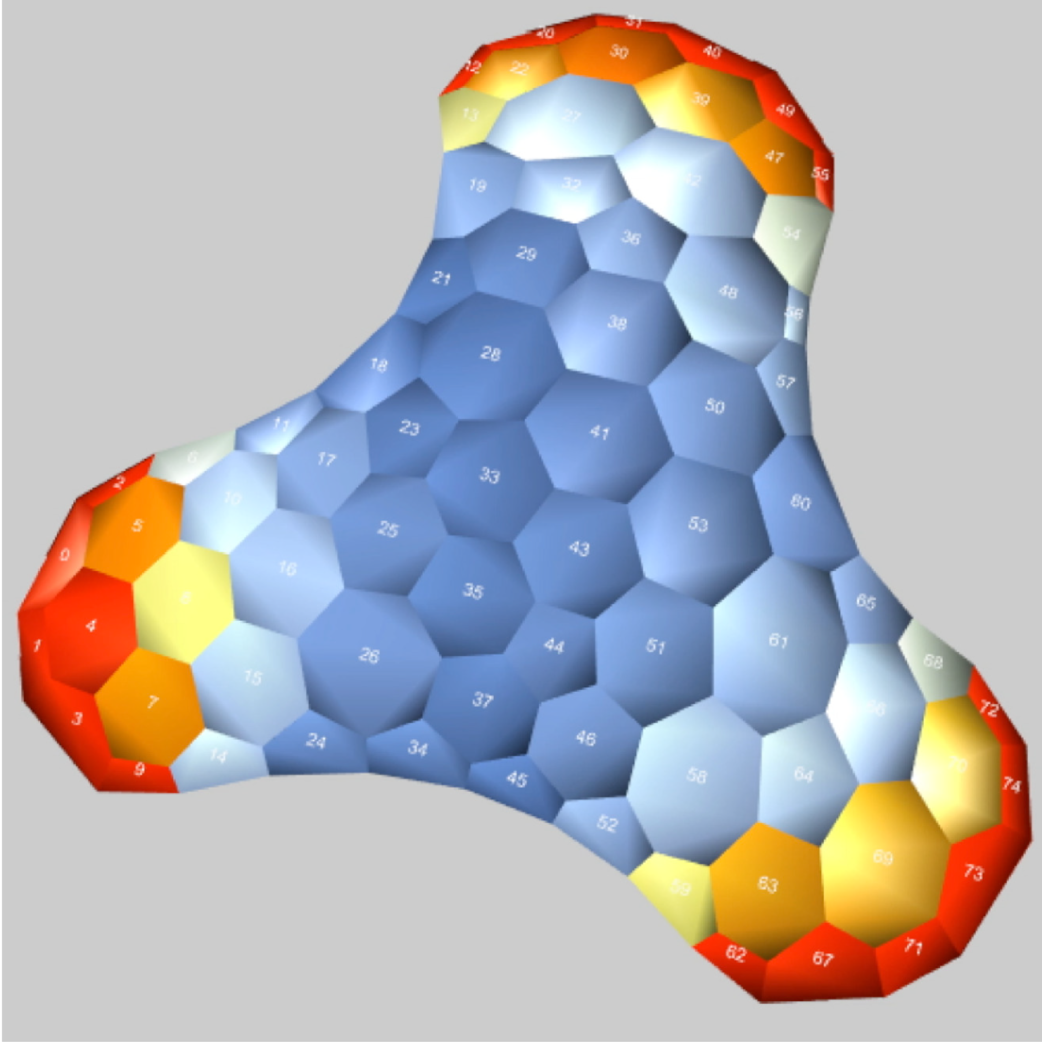

This paper proposes a workflow for Assembly-Aware Design (AAD) of masonry shell structures and introduces an interactive tool in a CAD environment to assist the design process while simulating the step-by-step assembly of masonry blocks. Thus designers can explore the design space of masonry shell structures and be aware of structural performance before the assembly phase, at the early design stage. Masonry shell structures are an old construction technique, which has recently received a lot of attention due to new computational methods. Even though the form of such a structure is optimised for structural performance, its incomplete form during construction often requires the support of falseworks, which can be extensive, costly and time-consuming. To tackle this unsolved problem, we developed an assembly strategy that significantly reduces the falsework usage while still maintaining the equilibrium of the incomplete shell at each assembly step. The key idea is to compute a disassembly strategy inspired by the Jenga game and then reverse it to obtain the actual assembly sequence of the masonry blocks. Rather than using discrete element methods to predict the structural behaviour of the masonry blocks, we employed the GPU-based rigid-body dynamic solver from the engine NVIDIA PhysX, this allows very fast computation speeds while still offering sufficient accuracy for our purposes. Finally, we verified our method using small-scale 3D printed models.
