These are my Rhino.Python practice while I studied at Stuttgart University. Rhino.Python - 1D 2D 3D Rhino.Python - Swarm bridge Rhino.Python - tessellation and subdivision Rhino.Python - Boy Surface and subdivision Rhino.Python - 1D 2D 3D """ #################################################################### Computational Design Assignment 02 Kao, Ting-Chun Assignment to use for loop #################################################################### """ from scriptcontext import doc, escape_test import rhinoscriptsyntax as rs import Rhino.Geometry as rg import Rhino.DocObjects as rd import Rhino import time import System.Guid as guid import System.Drawing as sd import math import random dimension = rs.GetInteger("give me one to three dimension: ", 2, 1, 3) print(dimension) # some functions def PtMat(x, y, z): pt = rg.Point3d(x, y, z) materialIndex = doc.Materials.Add() material = doc.Materials[materialIndex] if dimension == 2: if x > 0 and y>0 and z>0: material.DiffuseColor = sd.Color.FromArgb(y/5*255*0.5, y/5*255*0.5, y/5*255) else: material.DiffuseColor = sd.Color.FromArgb( 255, abs(math.sin(x))*255, 255) material.CommitChanges() attr = Rhino.DocObjects.ObjectAttributes() attr = rd.ObjectAttributes() attr.MaterialSource = Rhino.DocObjects.ObjectMaterialSource.MaterialFromObject attr.MaterialIndex = materialIndex if dimension == 2: sphere = rg.Sphere(pt, (y+5)/5) elif dimension == 3: sphere = rg.Sphere(pt, 0.2) else: sphere = rg.Sphere(pt, 2) if doc.Objects.AddPoint(pt, attr) != guid.Empty: doc.Objects.AddSphere(sphere, attr) return pt def noneLoopPt(): pt = PtMat(i*math.sin(5*i), i*math.cos(5*i), i) return pt def oneLoopCrv(): pts = [] for x in range(50): y = math.sin(x) * math.sin(i) pts.append(PtMat(5*x, 5*y, 5*i)) crv = rs.AddCurve(pts) return crv def twoLoopCrv(): pts = [] crvs = [] for x in range(30): for y in range(40): a = ( i + math.cos(x/2)*math.sin(y) - math.sin(x/2)*math.sin(2*y) ) * math.cos(x) b = ( i + math.cos(x/2)*math.sin(y) - math.sin(x/2)*math.sin(2*y) ) * math.sin(x) c = 10*math.sin(x/2)*math.sin(y) - math.cos(x/2)*math.sin(2*y) pts.append(PtMat(a, b, c)) crv = rs.AddCurve(pts) crvs.append(crv) return crvs def threeLoopSrf(): # haven't getten any idea to having a good one. return 0 def drawTime(): FPS = 30 last_time = time.time() # setup variables global i i = 3 curves = [] pts = [] # whatever the loop is... while True: # draw animation if dimension == 3: i += 3 else: i += 1 # pause so that the animation runs at 30 fps new_time = time.time() # see how many milliseconds we have to sleep for # then divide by 1000.0 since time.sleep() uses seconds sleep_time = ((1000.0 / FPS) - (new_time - last_time)) / 1000.0 if sleep_time > 0: time.sleep(sleep_time) last_time = new_time if dimension == 2: crv = oneLoopCrv() curves.append(crv) if i > 20: rs.AddLoftSrf(curves) break elif dimension == 3: curves = twoLoopCrv() escape_test() else: pt = noneLoopPt() pts.append(pt) if i > 80: #rs.AddLoftSrf(curves) rs.AddCurve(pts) break escape_test() def main(): drawTime() if __name__ == "__main__": main() Rhino.Python - Swarm Bridge Swarm Behavior + Attractor : Agent methods: 1. Align : Move in the same direction as your neighbours. 2. Cohesion : Remain close to your neighbours. 3. Seperation : Avoid collisions with your neighbours. Attractor methods: (Controlling the shape) From starting points move to target points to create bridge. Using swarm simulation in Grasshopper is in this post: Swarm Python GH Component ...

Gene Kao, Ting-Chun portfolio 2008-2013

My Processing 101 creative coding experiments. 00 Kamehameha Simple 01 Attractor2DSimple 02 BouncingBallSimple 03 Wave 05 waterPipe 06 TwoPlayersGA Processing 101 – 00 Kamehameha Simple Kamehameha かめはめ波 龜派氣功 instruction Press you mouse left button. Drag it in the opposite direction. And you will find out it open fire automatically. Dictionary: Kamehameha かめはめ波 龜派氣功 Code Inspired From: Processing.js learning Sample float radius = 50; int X, Y; void setup() { size( 650, 200 ); strokeWeight(10); fill( 198, 81, 10); stroke(255); X = width/2; Y = height/2; } void draw() { background(100); radius += sin(frameCount/10); ellipse(X+=(X-pmouseX)/16, Y+=(Y-pmouseY)/16, radius, radius); } void mouseMoved() { X = mouseX; Y = mouseY; } Processing 101 – 01 Attractor2DSimple Attractor Each circle on the grid points change its diameters, which based on distance between mouse position and point’s location. Dictionary: Attractor 吸引子，原本為複雜科學裡的一個專有名詞，近期廣被用來描述於Parametricism。 最先被運用在Grasshopper裡頭。 ...

–蝶跡– Description: 蝶跡的設計啓發於蝴蝶幼蟲，生長成蝴蝶展翅瞬間的造型，以用於圍塑空間形態以及外觀紋理。在結構上也與蝴蝶翅膀振動為靈感之啓發，以最輕薄的木夾板去挑戰材料之彎曲性與結構性，進而產生動態平衡。另外在構造上運用電腦運算技術使複雜造型由416片單元組合而成，以極簡的拉鍊扣合做法連接單元與單元進而產生極複雜細部，在正反的拱肋結構演算下，整體重量平均分攤至7個底座，使整體結構輕量化。 實際走入蝶跡展示庭，空間經驗上，太陽撒入木板因彎曲曲度而刻畫的開口中，微風飄動過整體結構，結構體輕輕飄動而陽光如在樹蔭下似閃爍，就像蝴蝶翩翩起舞輕過留下痕跡一般優雅。 –pavilionButterflyEffect_Geometry– Not-found –pavilionButterflyEffect_step01 Definition– –pavilionButterflyEffect_step02 Definition– –pavilionButterflyEffect_step03 Definition– Not-found –pavilionButterflyEffect_step04 Definition– Not-found –Geometry Size Selection Filter Python Code– ### --Written by Gene Ting-Chun Kao-- ### import rhinoscriptsyntax as rs ids = rs.GetObjects("select surfaces", rs.filter.polysurface) area = rs.GetInteger("selected area limits", 10, 0) rs.EnableRedraw(False) print "Results: All", len(ids), "surfaces selected." Count = 0 for i in ids: b = rs.SurfaceArea(i) if b: if b[0] < area: rs.SelectObject(i) Count += 1 print "Results: Get", Count, "small objects." rs.EnableRedraw(True)

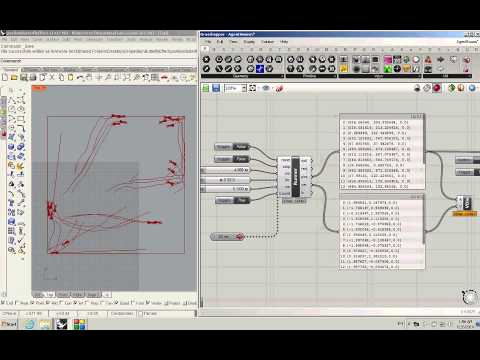

Swarm in Grasshopper using GH_Python component. Testing swarm behaviour in Rhino is in this post: Rhino.Python Swarm Bridge For more discussion please visit my post in grasshopper example forum. GH_Python Code: ### --Written by Gene Ting-Chun Kao-- ### ghenv.Component.Message = "written by +GENEATCG" import rhinoscriptsyntax as rs import Rhino as rc from random import * rectX = 600 rectY = 600 class Runner: def __init__(self, p, v): self.p = p self.v = v self.a = rs.VectorCreate( (0,0,0),(0,0,0) ) def ptRun(self): self.v = rs.VectorAdd(self.v, self.a) v = rs.VectorLength(self.v) if v > 2: self.v = rs.VectorScale(rs.VectorUnitize(self.v), 2) self.p = rs.VectorAdd(self.p, self.v) self.a = rs.VectorCreate( (0,0,0),(0,0,0) ) # ... (full code on GitHub)

Clock Design using Processing ClockDesign_001_Basic ClockDesign_002_Mondaine ClockDesign_001_Basic Clock Design through code. Minimalism 時間設計 — 極簡風 float h, m, s; void setup() { size(650, 650); smooth(); } void draw() { background(200); pushMatrix(); translate(width/2, height/2); strokeWeight(1); stroke(100); noFill(); ellipse(0, 0, 400, 400); s = 6*second()*(TWO_PI)/360 - PI/2; m = 6*minute()*(TWO_PI)/360 - PI/2; h = 30*hour()*(TWO_PI)/360 - PI/2; fill(255); for (int i = 0; i <= 60; i++) { strokeWeight(1); line(cos(i*6*(TWO_PI)/360)*203, sin(i*6*(TWO_PI)/360)*203, cos(i*6*(TWO_PI)/360)*190, sin(i*6*(TWO_PI)/360)*190); ellipse(cos(i*6*(TWO_PI)/360)*200, sin(i*6*(TWO_PI)/360)*200, 5, 5); if (i % 5 == 0) { strokeWeight(2); line(cos(i*6*(TWO_PI)/360)*203, sin(i*6*(TWO_PI)/360)*203, cos(i*6*(TWO_PI)/360)*180, sin(i*6*(TWO_PI)/360)*180); ellipse(cos(i/5*30*(TWO_PI)/360)*200, sin(i/5*30*(TWO_PI)/360)*200, 10, 10); } } noStroke(); fill(255); ellipse(0, 0, 10, 10); //ellipse(cos(s)*200, sin(s)*200, 10, 10); //text(s + ", "+ second(), cos(s)*200, sin(s)*200); ellipse(cos(m)*200, sin(m)*200, 20, 20); //text(m + ", "+ minute(), cos(m)*200, sin(m)*200); ellipse(cos(h)*200, sin(h)*200, 20, 20); strokeWeight(5); stroke(100); line(cos(s)*180, sin(s)*180, cos(s)*10, sin(s)*10); strokeWeight(8); line(cos(m)*150, sin(m)*150, cos(m)*10, sin(m)*10); strokeWeight(10); line(cos(h)*100, sin(h)*100, cos(h)*10, sin(h)*10); popMatrix(); } ClockDesign_002_Mondaine Clock Design through code. Mondaine 時間設計 — 瑞士國鐵表 ...
